scenarioDataToViz¶
Overview¶
Demonstrates how to convert spacecraft states, stored in a text file from another program, into Basilisk
messages using Module: dataFileToViz. These messages are red by Module: vizInterface to save a Vizard
compatible data play for offline playback and analysis. In this simulation a servicer is holding a relative
position with respect to an uncontrolled satellite. Custom spacecraft models are specified for Vizard
in the folder dataForExamples.
The script is found in the folder basilisk/examples and executed by using:
python3 scenarioDataToViz.py
The simulation layout is shown in the following illustration. A single simulation process is created which contains both modules.

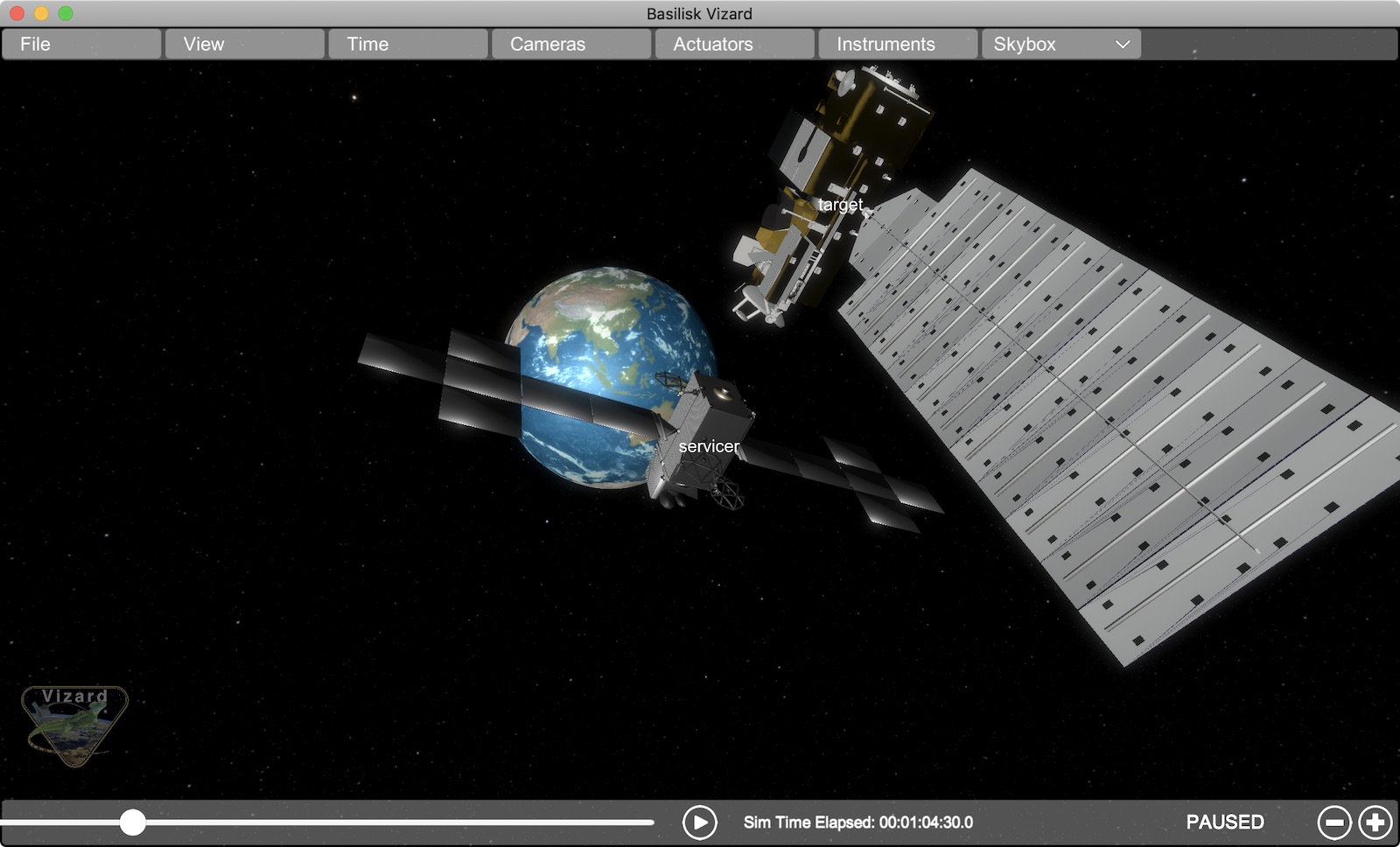

When the simulation completes several plots are shown for the MRP norm attitude history and the inertial relative position vector components. A servicer spacecraft approaches a target and holds a specific target-frame fixed location even while the target itself is slowly rotating. The servicer and target orientations are controlled to be the same to prepare for a final docking maneuver. If the data is saved to a Vizard file, then the visualization should look like:
Illustration of Simulation Results¶
show_plots = True
